NOTE:  This book was published around 1920 as a manual to accompany the Gilbert Weather Bureau sets.  The sets and manual were part of the "Boy Engineering" series, While some of the experiments and activities here may be safely done as written, some of them may be considered hazardous in today's world, such as handling a mercury barometer.  In addition, some of the information contained in this book is either outdated or inaccurate.  Therefore, this book is probably best appreciated for its historical value rather than as a source for current information and good experiments.  If you try anything here, please understand that you do so at your own risk.  See our Terms of Use.

Pages 44 - 61

44 GILBERT BOY ENGINEERING

NOTE:  Many figures have been relocated from their position in the printed text to make them more readable on a web page.  This may or may not be indicated in the text.

When overhead clouds are thick and grayish and the lower surface of them is lumpy, this is an indication of rain.

Whirlwinds of dust are also indications of rain.

THE MOON

The rings that we see formed about the moon are cause by the delicate white clouds through which the moon is shining.

GILBERT WEATHER BUREAU 45

THE RAINBOW

The morning rainbow indicates that a shower is in the west, but if the rainbow is in the east it indicates that the shower has passed over.

BIRDS AND STORMS

There are certain actions of birds that indicate many things pertaining to the weather that are interesting.  It is probable that their ability to fly into the air gives them a view of the horizon, that by instinct they have been able to determine the atmospheric changes.  For instance, it is well known that if birds of long flight remain at their base, it generally foretells a stone.  The sudden silence of birds has been referred to a great many times preceding a storm.

Barnyard fowls do many peculiar things that foretell certain weather conditions.  The crow flies low and in great circles, cawing loudly, before approaching rain.

Sometimes the housefly is a pretty good barometer.  Generally before a storm they seem to light on everything, particularly persons, and we call them "sticky."  Generally at these times they congregate in swarms.  Most everyone is familiar with the gnat.  They are one of the few insects that give us indications and good signs, and when you see them forming in groups and moving along in front of you, you may expect fair weather.

There are many other interesting facts and fairy tales about indications by animals and insects, but there's nothing scientific about them.  It has been demonstrated that there is nothing conclusive to be drawn from such signs, so we will not attempt to waste pages of this book reiterating these fables.

Certain actions of insects and animals give indications and enable the weather prophet to prophesy.  The spider is a good example of an insect prophet, and if you will observe him carefully, you will find that when stormy weather is going to come on he shortens his webs, and if he anticipates a long, hard storm, he not only shortens the strings that hold up the web, but strengthens them as well, and vice-versa, when he anticipates fine weather, he lengthens his strands of web.  When you see the spider cease his activities and he hangs pretty close to his home, which is the center of the web, you will know that rain is approaching.  On the other

46 GILBERT BOY ENGINEERING

hand, if he continues to spread about during a storm, you can be pretty certain that it is not going to be of very long duration.

The frog is a good example of an animal prophet.  There is a green frog which has been studied in Germany, which will come out of the water when rainy weather or cold is approaching.  Some observers have placed these frogs in a glass jar with a landing provided so that he can come out of the water when he wants to, and he is always observed high and dry above the water several hours in advance of a storm.

DEFINITE CONCLUSIONS
Forecasting Weather by Means of Instruments

The first part of this book may not appeal to you, if you are of a scientific trend of mind, but it is quite essential that you possess a knowledge of the fundamentals treated in the earlier pages in order to thoroughly understand the weather instruments we will now describe.  These instruments are the scientific means of forecasting what the weather is going to be.  They definitely indicate certain things, and from these indications you are going to be able to draw conclusions and become a scientist or meteorologist.  The success that you attain will depend upon the accuracy of the instruments and the care you use in reading them.  You will be able to rig up a Weather Bureau of your own, and the use of these instruments will interest anyone in a study of the weather.

THE WEATHER VANE

To make a forecast, it is essential from what we have already written to know the direction of the wind, and to determine the direction we must have a weather vane.  It is real important that the vane should be sensitive to the slightest movement of the wind and give actual wind directions.  At the same time it must possess the property of steadiness, so that when it is set up it will be rigid.



Fig. 34 shows the standard weather vane used at all United States Weather Bureau Stations and Fig. 35 shows the Gilbert Weather Vane.



Fig. 35.  The Gilbert weather vane consists of a metal arrow pointer and a metal rod 8 inches long and five thirty-seconds

GILBERT WEATHER BUREAU 47

of an inch in diameter.  The rod is fastened by means of a few staples to the side of a pole, or whatever is to be used as a support for the vane.  About three inches from the top is a collar with set screw, which is tightened, and the vane itself is then placed on the rod, the rod passing through the small angles A and B, between the sides of the vane.  It will be found that the vane will swing freely on this support, and by constructing two crosspieces, with letters N, S, E, and W at each end of the pieces, of course having N pointing directly north, the vane will swing around and show the direction of the wind.

The standard United States Weather Bureau type hardly needs explanation, as the illustration clearly shows all the parts.  It is the old, reliable, standard iron, combined wind vane and anemometer support complete, twenty feet high; iron contact box near base, improved roller bearings for six foot vane; latter, with electrical contacts shown enlarged at the right.  The vane is fastened securely to the roof of the building and held in a perfectly vertical position.

THE ANEMOMETER. Fig. 36

It is essential to know the velocity of the wind.  This is determined by means of an instrument called the anemometer.

Fig. 36.  The Standard U.S. Weather Bureau Station Anemometer.



This is the well-known standard Robinson Anemometer, now in universal use throughout the world for the registration of wind velocity, but of the latest improved construction.  It records electrically the miles or kilometers, etc., of wind movements on a register.  The standard pattern as furnished to Weather Bureau stations is made of brass, highly polished and finished, aluminum (or copper reinforced) cups, steel spindle with hard steel bearings, a ten-mile or kilometer indicator, electrical contacts etc.

The four hollow hemisphericical cups are mounted upon cross-arms at right angles to each other, with the open sections vertical and facing the same way around the circumference.  The cross-arms are on a vertical axis, which has at its lower end an endless a screw.  This axis is supported so as to turn with as little friction as possible.  The endless screw is in gear with a wheel which moves two dials registering the number of revolutions of the cups.  The mechanisms are mounted in a suitable metal case with glass front,

GILBERT WEATHER BUREAU 49

[Originally contained Fig. 39]

50 GILBERT BOY ENGINEERING

as shown in the illustration, well protected from the weather, the whole being designed for outdoor use.

The center of the cups moves with a velocity about one-third that of the wind which puts them in motion.  The cups are four inches in diameter.  The distance from the center of cup to center of rotation or axis is 6.72 inches.  Assuming that the wind-travel is exactly three times that of the center of the cup, the dials are marked to register miles of wind travel, five hundred revolutions of the cups corresponding to a mile.

The ratio of wind-travel to travel of cup is in reality variable, depending on the velocity of the wind.  It is less for higher than low velocities.  It also varies with the dimensions of the instrument, being different for every different length of arm and diameter of cup.

On account of the great interference offered by buildings and other obstructions to the free movement of the wind, its velocity is much less in the vicinity of these obstructions than beyond; therefore, in selecting the location for an anemometer, preference should be given to the more elevated points in the vicinity of the station, and some rigid support should be used to raise the instrument as far as practicable above the immediate influence of the office building itself.  The support must be set up so that the anemometer on top or on the cross-arm is as nearly vertical as possible.

The illustration shows clearly the appearance of an improved Weather Bureau pattern combined support for wind instruments, similar to the one installed at our plant.

GILBERT WEATHER BUREAU 51

Fig. 37.  The Gilbert Anemometer.



The Gilbert Anemometer consist of a case containing a spindle passing through a worm gear, which turns a toothed gear.  This gear in its rotary motion makes a contact with a brass brush, which is connected electrically with a flashlight.  The cross arms, with cups attached, is placed on the spindle, and as the wind blows, it revolves the cups, causing the contact.  The velocity of the wind is determined by counting the flashes for fifteen seconds, thus giving you the number of miles per hour.  For instance, if a light flashes eight times in fifteen seconds, this signifies that the wind is blowing 8 miles an hour.

Fig. 38.  How to Connect the Gilbert Anemometer.



By referring to the diagram, you will see that one wire which should be the annunciator wire, or even a small electric light wire, is connected from the wire at the anemometer case directly to one side of the lamp socket.  Another piece of the same size wire connects the other side of the lamp socket to one terminal of your switch.  The second terminal of the switch should be connected to an outer post of one dry battery.  The inner post of this same dry battery should be connected to the outer post of the second dry battery.  Complete the circuit by connecting the inner post of the second dry battery to any one of the screws at the bottom of the anemometer case.  The lamp used should be a small flashlight battery lamp for use on two and a half to three volts.   Be sure in making the connections that the ends of your wire are scraped free from insulation and dirt.  This can be done by cutting off the insulation with the knife and then rubbing the copper wire bright by a piece of sandpaper or emery cloth, or even a file.  The switch should be left open when you are not taking readings, in order to prolong the life of your batteries.  By unloosening the little screw in the hub of the anemometer vanes, you can remove them and also take off the brass cap on the anemometer case.  This should be taken apart once or twice a month, and some machine used around the bearings to keep them from wearing out too quickly.
52 GILBERT BOY ENGINEERING

THE STANDARD ELECTRICAL SUNSHINE RECORDER AND THE GILBERT SUNSHINE RECORDER



Fig. 39.  The standard sunshine recorder is designed for recording the duration of sunshine electrically, continuously, and automatically, on a register.  The instrument is essentially a differential air thermometer in the form of a straight glass tube with cylindrical bulbs at each end, enclosed in a protecting glass sheath, with suitable platinum wire electrodes fused in at the center, the whole mounted in a metal socket on an adjustable support.

The base is secured to the support on the roof so that the glass tube points north and south, with the blackened bulb toward the south and lower most, then the tube is inclined at such an angle that the instrument will begin and cease to record sunshine with the proper degree of cloudiness.  This inclination should be approximately 45° from the vertical.  The machine should be adjusted at an hour when the sun is wholly obscured.

In temperate and cold climates, slightly different adjustments will be found necessary at the different seasons of the year.

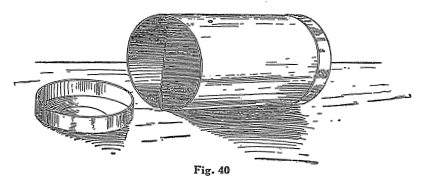

Fig. 40.  The Gilbert Sunshine Recorder consists of a metal case, cylindrical in form, with a piece of metal turned up on the ends, dividing the cylinder in half.  On each side of the case are small holes through which the sun casts its rays and records its movement and duration on a small piece of blueprint paper inside the cylinder, one piece of the paper being in each compartment.  When the blueprint paper is dipped in

GILBERT WEATHER BUREAU 53

[Originally contained Figs. 43 & 44]

54 GILBERT BOY ENGINEERING

water, it becomes entirely bleached, with the exception of the path made by the sun, which shows up in a blue line.

The sunshine recorder should be set up so that the ends point directly north and south.  The holes pierced in the sides of the case are nearer one end than the other.  The end that the holes are nearest should be toward the south.  It should be held firmly in place.

THE BAROMETER

The barometer is used for measuring the pressure of the atmosphere.  The principle of this instrument was first discovered by Torricelli, a pupil of Galileo, the great Italian philosopher and scientist, in 1643.  Many and various types of instruments have been made, but the two most generally used, especially where accurate indications are desired, are the mercurial and aneroid barometers.  Either of these instruments are quite sensitive to changes in the weight or pressure of the earth's atmosphere, and from their variations we are able to draw conclusions relative to changes in the weather.  Figs No. 41 and 42 illustrate the standard mercurial and aneroid barometers used most extensively today.  A description of these barometer will serve to make the photographs clearer to the readers of this text

THE MERCURIAL BAROMETER (Fig. 41)



The mercurial barometer in use today is practically the same as that invented by Torricelli.  Of course, many changes have been made in the case containing the tube of mercury, adding to its attractiveness, but the principle remains the same.

The standard mercurial barometer consists of a straight glass tube about thirty-two or thirty-three inches in length, hermetically sealed at one end.  The tube is of half-inch bore and is filled with chemically pure mercury, which has been boiled in the tube to insure the total exclusion of all air and moisture.  After the tube has been filled, the opening and is immersed in a cistern of mercury.  Upon immersion the mercury drops in the tube to a height of 29.92 inches at sea level, or until counterbalanced by the weight of the surrounding atmosphere pressing up on the surface of the mercury in the cistern.  The space in the top of the tube is a perfect vacuum and is called the Torricellian vacuum.

The glass mercury tube is enclosed in a brass case.  About two
GILBERT WEATHER BUREAU 55

inchs from the top of the case is an opening extending down the front and back for a distance of about eight inches.  On each side of this opening is a graduated scale, one side being in inches and the other graduated in centimeters.  The opening is fitted with a sliding vernier scale graduated in millimeters, thus permitting the reading of changes in the height of the mercury column most accurately, as the sliding vernier may be adjusted to the level of the mercury by means of a thumbs screw fitted on the side of the case.  The cistern containing the mercury is of glass, with a soft leather or chamois bottom and an adjusting screw, used to raise or lower the level of the mercury, so that it just comes in contact with a small ivory point, inserted in the top of the cistern, and which is used to mark the zero of the scale.  Observations of the changes in the atmospheric pressure should be taken at regular intervals, and it is necessary to adjust the height of the mercury in the cistern before each observation.  This is done by bringing the ivory point in contact with the level of the mercury and then bringing the vernier scale absolutely level with the top of the column of mercury in the tube, and then take the reading.

The mercurial barometer is a very delicate instrument and when once placed in the desired position should not be moved.  Care should be taken that the room in which the barometer is placed is of nearly uniform temperature, for if the temperature at the top of the barometer is different than the temperature at the bottom, of course there will be an effect produced on the changes in the mercury column.  All other barometers are set by the mercurial.

THE ANEROID BAROMETER (Fig. 42).



The aneroid barometer is so constructed that it contains no liquid whatsoever, and thus derives its name from the Greek compound word "aneroid," meaning "without fluid."

The essential parts of the instrument are a metallic case from which the air has been exhausted, and which contains a spring.  The case of elastic metal is fastened to a base plate at the bottom and to the spring at the top.  The pressure of the atmosphere causes the case to expand and contract, thus effecting the spring, which is connected to a needle or dial, causing the dial to move around on the scale on the face of the instrument and record the changes.  The scale is marked off in inches from 28 to 31, and besides

56 GILBERT BOY ENGINEERING

a brass hand or pointer, used to designate the changes in the atmospheric pressure, there is a small index hand to set over the needle so that the amount of change in a certain period is easily known on consulting the instrument.

The dial of the the barometer is marked with the words "Fair," "Change," and "Rain," etc., but these words have no significance and should be disregarded.  For instance, 29 1/2 is marked "Change "; 30, "Fair "; 31, "Very dry"; 28 1/2, "Rain." .  If the barometer, which has been standing at 30.9, suddenly drops down to 29.9, this is positive indication that a storm is approaching, with strong winds, yet, according to the dial on the aneroid, the reading would be "Fair."   If the barometer were standing at 28 and rose to 29, this would actually indicate approach of cold, dry weather, and yet on the dial it reads "Rain."  This simply goes to show that the readings on the dial are of no significance whatsoever, and are not to be relied upon.

The aneroid is not as accurate as an instrument as the mercurial, so should be checked up occasionally with the mercurial barometer.

GILBERT WEATHER BUREAU 57

The aneroid type of barometer is also used in altitude work, but must be compensated before using.

This type of barometer possesses several advantages over the mercurial in that it is portable and therefore used for altitude work; at sea it is used because there is no fluid to become unsettled by the motion of the vessel; it is also used in observatory work because the action is quicker than the mercurial barometer action and sudden changes likely to occur are indicated.

INDICATIONS FROM THE BAROMETER

A single observation reading of the barometer is of no significance.  Reading must be taken at different intervals or the results will be misleading.  The important thing about the barometer is to watch the rise and fall, particularly, whether it is gradual or rapid. From no single reading can you make an observation or forecast.  A rapid rise indicates that a strong wind is apt to blow.  A rapid fall indicates that the weather will be unsettled, and that strong winds are apt to blow.  Both indicate a change in the weather, depending upon many things, particularly however, the direction from which the wind blows.  If an observer stands with the wind blowing on his back, the area of low low barometric pressure will be at his left, and that of high barometric pressure at his right.  With low pressure in the west and high pressure in the east, the wind will be from the south; but with low pressure in the east and high pressure in the west, the wind will be from the north.  The barometer rises for northerly winds, from northwest by the north to the eastward, for

58 GILBERT BOY ENGINEERING



GILBERT WEATHER BUREAU 59



60 GILBERT BOY ENGINEERING

[Originally contained Figs. 47]

GILBERT WEATHER BUREAU 61

dry, or less wet weather, for less wind, or for more than one of these changes - except on a few occasions, when rain, hail, or snow comes from the northward with strong wind.  The barometer falls for southerly wind, from southeast, by the south, to the westward, for wet weather, for stronger wind, or for more than one of these changes, except on a few occasions, when moderate wind with rain or snow comes from the northward.

GENERAL BAROMETRIC INDICATIONS

A gradual but steady rise indicates settled fair weather.

A gradual but steady fall indicates unsettled or wet weather.

A very slow rise from a low point is usually associated with high winds and dry weather.

A rapid rise indicates clear weather with high winds.

A very slow fall from a high point is usually connected with wet and unpleasant weather without much wind.
