Chapter IV
TRANSMISSION OF SOUND - CONCLUDED

What do we mean when we say sound travels?  What is it that travels through the air, water or steel so readily?  There was a time when it was quite generally supposed that electricity was an invisible substance which flowed through wires.  You are surely enough of a scientist to see very readily that, in the transmission of sound, as in that of electricity, no substance actually travels from place to place, as from tuning fork to the ear.  What is transmitted may be very easily demonstrated.



Experiment No. 14.  Take a metal tube or make of paper or cardboard tube by rolling some paper or cardboard around a stick and then removing the stick.  Make this about 6 or 8 feet in length and at least 3 inches in diameter.  Seal one end by means of a thin rubber dam tightly stretched across the opening, holding it in place with a rubber band, string or wire.   At the other and make a cone with an inch opening.  Place a little candle a few inches from the cone so that the flame from the candle will be just opposite the hole in the end of the cone.  Your  apparatus is now ready for the experiment.  (See Figure 21.)

Make a noise at the end of the tube just beyond the rubber diaphragm with any vibrating body, such as hitting two pieces of metal together or two blocks of wood, and watch the flame of the candle.  If you have followed the directions, you will find that when the vibration - that is, the sound - is produced the flame will bend away from the opening.  Now this should

(35)


36 GILBERT BOY ENGINEERING

be conclusive proof to you in view of the fact that the tube is sealed up by means of a rubber dam that air cannot pass through it.  Therefore, if you reason as a scientist should reason, you will come to the conclusion that the flicker of the candle flame is due to energy which has being transmitted from the origin of the noise down the tube to the flame.  The energy produced at the point of origin of the sound strikes the rubber diaphragm, causing it to vibrate and thereby to transmit a certain amount of energy on to the flame.

MANOMETRIC FLAMES



Experiment No. 15.  The manner in which this "sound energy" is transmitted may be beautifully shown by an experiment which you can perform for yourself.  By using a little thought and ingenuity you can rig up the necessary apparatus, the ideal form of which is shown in the accompanying illustration.  (See Figure 22.)

A wooden or metal box about 3 inches square is divided into two chambers by means of a thin rubber diaphragm placed fairly near to one side of the box.  A stream of gas is admitted to the small chamber, from which it passes out again to a small jet, making an even, pointed flame.  The small and of a mega-

GILBERT SOUND EXPERIMENTS 37

phone is fitted into the other end of the box.  About 2 1/2 feet away place a mirror, preferably so arranged so that it can be rapidly revolved.  For the revolving type, it is best to take four

38 GILBERT BOY ENGINEERING

mirrors and fasten them to the four sides of a square box.  When the room is darkened, you are ready for the experiment.

With the flame burning steadily, start the mirror revolving or - to produce the same result - turn the eye quickly, throwing the line of sight across the image of the flame in the mirror.  You will see the flame reflected as a straight band of light.



Now hold a tuning fork, mounted on a sounding box, near the large end of the megaphone and start it vibrating by means of a violin bow or cork hammer.  When the mirror is revolved, you will see the flame reflected as a series of sharp points of light.  See figure.  As the vibration of the tuning fork dies out, the points on the band of light in the mirror become shorter until, when the fork stops vibrating, the straight band of light is again seen in the mirror.



The one thing which this experiment shows more clearly than anything else is the fact that "sound energy" is transmitted in regular pulsations, which are called waves - air waves or sound waves.  As a prong of the tuning fork moves forward toward the megaphone, it pushes the air particles next to it ahead,

GILBERT SOUND ENGINEERING 39

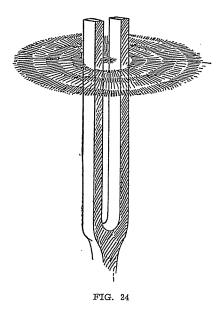

condensing them.  (See Figure 24.)  The fork then suddenly changes direction and moves backward, leaving a partial vacuum or a rarefaction behind it.  The air particles which have been condensed now rush back to fill this rarefied space; but in the meantime they have acted upon the air particles next to them, thereby setting up a series of condensations and rarefactions which eventually reach the rubber diaphragm, causing it to vibrate.  As the diaphragm vibrates, it causes the pressure of the gas in the chamber to change rapidly and these changes in gas pressure cause the flame to flicker up and down.  The changes in the height of the flame are so rapid that the eye cannot detect them unless they are separated by one of the two methods previously described.



There are many examples of the transmission of energy by means of wave motion.  We have all seen a smooth pond of water thrown into ripples (wave motion) by throwing into it a stone.  (See Figure 25.)  Anyone living near the water knows the tremendous force of waves breaking up on the shore.  We all know the sting the hand gets if, when holding a piece of steel, it is hit with a hammer at the other end.  The jar of a door may be felt all over the house.  An explosion miles away may rattle the windows and even break them.  A huge tidal wave

40 GILBERT BOY ENGINEERING

may be caused by the eruption of a volcano.  In 1886 Krakatoa exploded, producing air waves that passed around the earth three times and a tidal wave that passed clear across the Pacific.

Hold one end of a piece of rope about 16 feet long and ask a friend to hold the other end.  Strike the rope sharply a few inches from your hand.  You will see a wave run along the length of the rope and cause a sudden jerk at the other and.  You may substitute for the rope a coil spring about 8 feet long, which may be made by winding wire on a piece of gas pipe.



Attach one end of this coil to a hook on the wall and hold

GILBERT SOUND EXPERIMENTS 41

the other end in your hand, stretching it out to some length.  (See Figure 26.)  Strike this coil with the hand and you will notice that a wave will run to the fixed end and return, when a sudden jerk will be felt by the hand.  This is a reflex or return wave which demonstrates that the wave transmits the force of the blow.  In other words this vibration, or oscillation, that is set up in one part of the wire is transmitted to the other parts in the form of waves.

WATER WAVES

Let us study the action of water waves.  Take a bowl of water and drop into it a ball and watch it produce a series of waves.  Here you will see a form of motion.  Now if a cork is thrown upon these waves you will observe that it rises, moves forward with the crest of the water, or wave, and then it sinks and moves backward, repeating this action with each wave motion that follows it; but the cork doesn't move from its original position.  This demonstrates conclusively that the water itself does not move with the wave but that the motion is passed along from one mass of water to the next.



To make this clear to you let us assume, and the theory is, that water is made up of molecules (small particles).  Note the illustration (Figure 27.) which should convey to you a series of balls suspended by strings so that they merely touch each other.  If one of these balls is touched a wave motion is produced and still the balls will remain in their same position.

42 GILBERT BOY ENGINEERING

AIR WAVES

The air waves we explained in the experiment with the revolving mirror are like the water waves produced by dropping the ball in the water in one respect - that is, they both go out in all directions from the point of original  vibration.  But air waves are different from water waves in regard to the type of vibration.  In the case of water waves the motion of the water is in a circular direction (remember the bobbing cork).



In air or sound waves, the air particles vibrate back and forth in the same direction in which the waves are traveling.  In water waves we have not only this but also the up and down motion.  (See Figure 28.) In airwaves we have a longitudinal

GILBERT SOUND EXPERIMENTS 43

vibration, which was explained by the ball and elastic in Chapter I.



The length of water waves is measured from the crest of one wave to the crest of the next.  The length of sound waves is measured from the center of one condensation to the center of the next.  (See Figure 29.)

Experiment No. 16.  You can show the similarity between water waves in the transverse and vibration of the pendulum, tuning fork, etc., in the following manner:



Prepare a strip of glass with a few drops of kerosene and sprinkle some flour over it.  Attach a whalebone with the a hole bored near the end of it to a block screwed to a board.  (See Figure 30.) Place the glass between two strips attached to the board and underneath the whalebone.  Attach a bristle to the whalebone in a position so that it just touches the glass.  By vibrating the whalebone and pulling the strip of glass out in a uniform movement you can trace these vibrations in the form of waves.

Experiment No. 17.  A fine way of demonstrating the "to

44 GILBERT BOY ENGINEERING

and fro" motion which takes place in compressional waves (of which sound waves are an example) is as follows:



Take a stiff coil spring about 2 1/2 or 3 feet long and attach each end firmly to hooks or nails on the wall so the spring is somewhat stretched out.  (See Figures 31.)  Grasp the spring 3 or 4 inches from one end and draw it toward that end, producing a condensation of the spring between your hand and the hook.  Now quickly release your hold of the spring so as

GILBERT SOUND EXPERIMENTS 45

not to start it vibrating up and down.  Place one finger lightly anywhere on the spring.  What happens?

If you have carefully followed the preceding explanation of longitudinal waves you will readily understand that the rapid back and forth motion which you feel with your finger is due to a series of pressure waves which were set up along the spring when the condensation at one end was released.

SYMPATHETIC VIBRATIONS

Now that you have seen to your entire satisfaction that the transmission of sound is nothing more or less than the transmission of energy in the form of waves, you will understand one of the most interesting phases of the Science of Sound.

THE MONOCHORD OR SONOMETER

More than 2,000 years ago a Greek scientist, by the name of Phagoras, invented an instrument called a monochord.  It was with this instrument that he discovered many things about sound produced by strings when vibrating.  You should construct a monochord for yourself, as many of the experiments to follow will required its use.



This is not a difficult piece of apparatus to rig up, and the illustration (Figure 32) will probably help you more than a

46 GILBERT BOY ENGINEERING

detailed explanation.  The essential features are the sounding box, the strings (mandolin, violin or wire strings), the sliding bridge and the tightening screws.



Experiment No. 18.  By using the tightening screws, get two of the strings of the monochord to the same note as the tuning fork you are using.  Now set the fork into a strong vibration, using method No. 3, described on page 18, and place it on the box between the two strings of the monochord, as shown in the illustration  (Figure 33).  After two or three seconds, stop the vibration of the fork by placing your fingers on the prongs.  You will be astonished now by hearing the two strings singing to you with some note that the tuning fork gave.

We believe that by this time you are enough of a scientist to reason out that the air waves from the fork, which you set in vibration with the violin bow, have traveled to the two strings and, having enough strength, have set them into similar vi-

GILBERT SOUND EXPERIMENTS 47

bration.  This means that when a sounding body is near another that has the same rate of vibration, the waves from the first will set the second body into vibration.



Experiment No. 19.  You may use two tuning forks, instead of a tuning fork and the monochord strings, and demonstrate the same phenomenon.  When two forks are used, they must be of exactly the same rate of vibration.  If you have two forks that vibrate at slightly different rates, you can get them the same by putting a small piece of wax on one prong of the fork which vibrates more rapidly.  You may have to try several times before you get just the right amount of wax to make the two forks give exactly the same tone.  Place each fork on a block and set them on a table or large box, about 18 inches apart.  (See Figure 34.) Set one of the forks in vibration and, after a few seconds, dampen it with the fingers as described in the preceding experiment.  Now, as before , you will hear the note of the fork you struck being sounded by the other fork which was not struck.

48 GILBERT BOY ENGINEERING

Experiment No. 20.  By using two strings of the monochord you will be able to get a result similar to that obtained with the two tuning forks.  First, by means of adjusting screws, tighten the strings so that they give the same note.  Now hold one of the strings with the fingers of your left hand so it cannot vibrate, and pluck the other string as you would in the case of a mandolin.  After a few seconds take your hand away from the string you have been holding and dampen the string which you plucked.  You should be able to hear a clear distinct note being sounded by the string which you first held.

Now compare the sympathetic vibration of the tuning forks with things in every-day life.  The act of pushing a swing is a simple illustration.  You exert your energy at regular intervals, which are the same as the natural rate at which the swing moves to and fro.  Bridges have a natural rate of swinging to and fro.  People who frequently walk across the Brooklyn Bridge get into the habit of adapting their stride to the swing of the bridge.  It has been said that, were it not for offsetting influences, you could strike the Brooklyn Bridge (or any other large bridge) with a hammer at the natural rate at which the bridge swings and in time cause it to swing so violently that it would topple over.

The swinging notion of bridges has long been recognized in military maneuvers.  The next time you see a large body of men cross a bridge or viaduct you will notice that the officer in charge will command his men to "break step" - that is, to walk out of step.  This is because the "measured tread" of a large body of men is liable to cause the bridge to vibrate or swing to such an extent as to become a unsafe.

The phenomenon of sympathetic vibration explains why things jingle when we play the piano.  Vases on the parlor table, picture frames on the wall, cut glass in the cupboard, knives and forks all have their natural rates of vibration.  When

GILBERT SOUND EXPERIMENTS 49

sound waves of the same rate of vibration are sent out from the piano and strike them, they vibrate just as the second tuning fork did in our last experiment.

BREAKING A GLASS WITH THE VOICE

Experiment No. 21.  A very striking experiment showing the strength of sound waves caused by the human voice can be admirably illustrated by an experiment or demonstration that oftimes is made by great singers.  Probably you have heard of singers having such strong voices that the vibrations produced from their throat would actually break glasses, and by the following experiment you can demonstrate that this is possible with your own voice.  Take a very thin, sensitive cut-glass goblet and set it in vibration by hitting it with a cork hammer or by rubbing it with your moistened finger if you are adept in doing this; this should cause the glass to emit loud and musical tones.  After you have set the tumbler in vibration, place the opening close to your mouth and shout into it as loud as you possibly can.   At the same time try to imitate the same tone or key that is emitted from the glass.  This will render double the amplitude of the vibrations and the glass will break into pieces.

A famous bass singer by the name of Labache always demonstrated this feat to show the strength of his voice much to the admiration of his friends and, although he had a wonderful voice, he also knew the secret of doing the trick that we have given you here.

FORCED VIBRATIONS

It's sometimes happens that one vibrating body will set another body into vibration even though not possessing the same natural rate of oscillation.  Set a tuning fork in vibration and place the lower end of it on a light wooden box that will readily vibrate.

50 GILBERT BOY ENGINEERING

You will find that the fork sets the box in vibration and this increased volume of vibration produces a loud sound which lasts for a comparatively short time.

The reason that the tuning fork stops vibrating so quickly and the noise subsides so soon is because the vibration of the box requires an extra amount of work from the fork and its energy is soon used up.  You will notice that the sound dies out very quickly.  The same principle is at work in the case of the swing.  You can cause a swing to move to and fro faster or slower than its natural rate, but it is hard work and you soon become tired out.

As an example of forced vibration, let me tell you how to do a dandy trick.  This is a very mystifying trick and one that you can perform at any time without any prepared apparatus.  It is an exceptionally fine trick to perform at a dinner or house party.



Hold a fork in your left hand, as shown in Figure 35, with your wrist on the edge of the table and the handle of the fork

GILBERT SOUND EXPERIMENTS 51

free from touching the table.  Snap the prongs of the fork with your thumb and index finger and you will get a ringing sound from the fork.  The trick now is to carry the sound with your right hand over to the glass on the table and throw the sound from your hand into the glass.  As you lean forward to throw the sound into the glass you press the handle of the fork on the table unnoticed by your audience.  This changes the faint ringing sound of the fork into a loud sound short duration, and it appears to your audience that you really carried the sound from the fork to that glass.

The reproducer of a phonograph, the metal discs in the telephone transmitter and receiver, the rubber diaphragms used in Experiments No. 14 and No. 15 are all familiar instances of the forced vibrations and you can doubtless think of other examples yourself.  The transmission of energy in the form of waves is the important fact demonstrated in each case.
